1-45 TON EXCAVATORS

VANROCK DIAMOND
ROCK SAWS

Equipped with Diamond tipped bladed, Vanrock Rock Saws are ideal for cutting sandstone, reinforced concrete, granite, limestone, hard limestone and even metal parts.

REQUEST A DEMO

Vanrock Global, soil stabilization system, best bucket crusher, excavator bucket, bucket crusher for excavators, crusher buck

Bi-Directional Rotation
Both clockwise and anti-clockwise for added flexibility.

360° Rotating Blade Cover
For easy manoeuvrability and maximum protection.

180° Rotatable Head Bracket
Easy change of blade position for left and right cut.

APPLICATION SECTORS

Recycling

Road Work

Pipeline & Trenches

Forestry

Tunnels

Urban

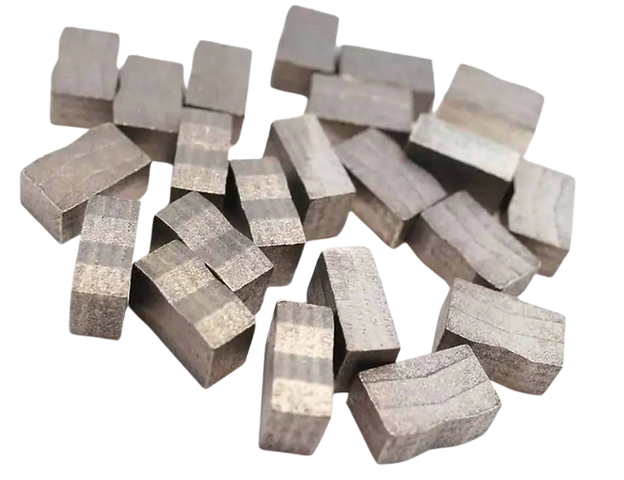

Diamond Tipped Blades
Effective for cutting through tough materials.

Automatic Blade Braking

Feature Prevents blade breakage.

EXPLORE VANROCK ROCK SAWS RANGE

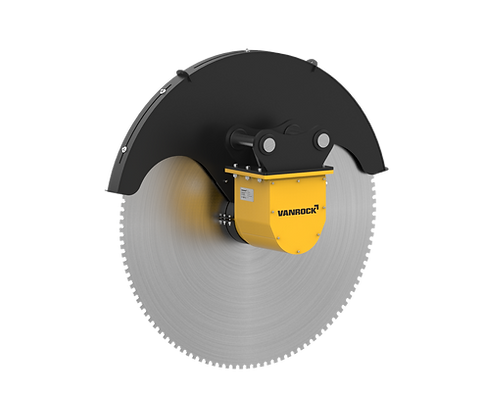

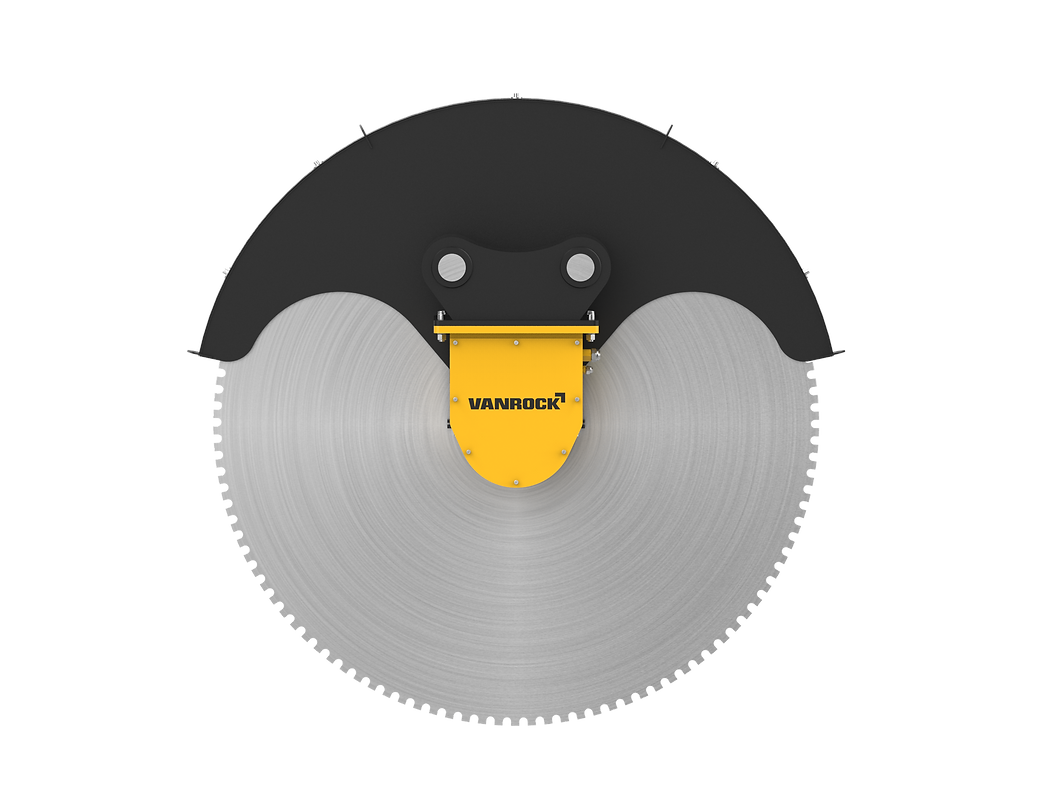

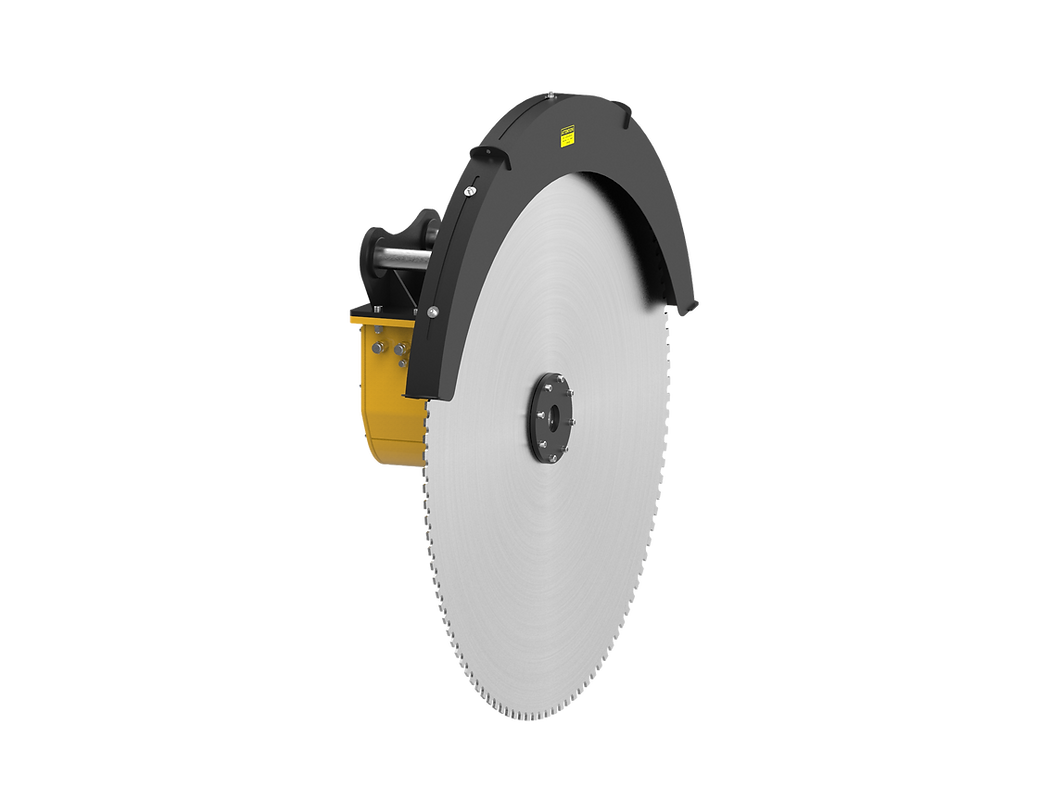

RT SERIES - SINGLE BLADE

RT 10S

Single Blade Rock Saw


1-4 TON

REQUEST A QUOTE

RT SERIES - SINGLE BLADE

RT 50S

Single Blade Rock Saw

5-10 TON

REQUEST A QUOTE

RT SERIES - SINGLE BLADE

RT 100S

Single Blade Rock Saw

8-17 TON

REQUEST A QUOTE

RT SERIES - SINGLE BLADE

RT 200S

Single Blade Rock Saw

15-25 TON

REQUEST A QUOTE

RT SERIES - SINGLE BLADE

RT 300S

Single Blade Rock Saw

20-45 TON

REQUEST A QUOTE

RT SERIES - SINGLE BLADE

RT 500S

Single Blade Rock Saw

45-60 TON

REQUEST A QUOTE

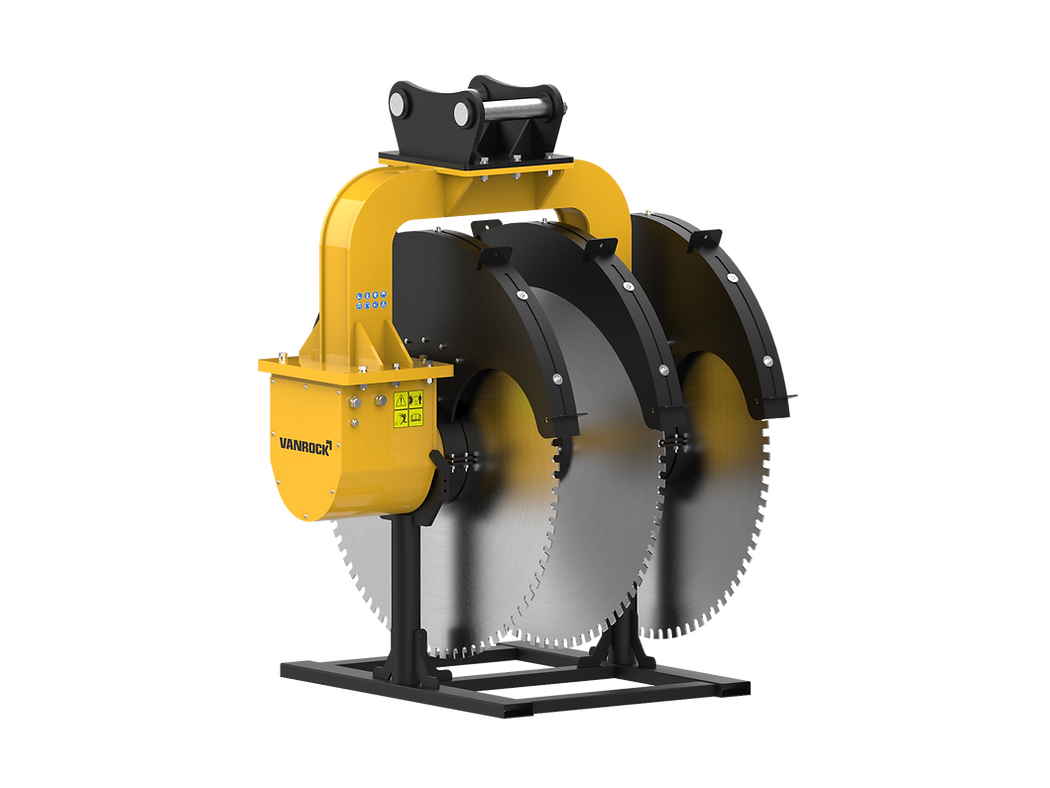

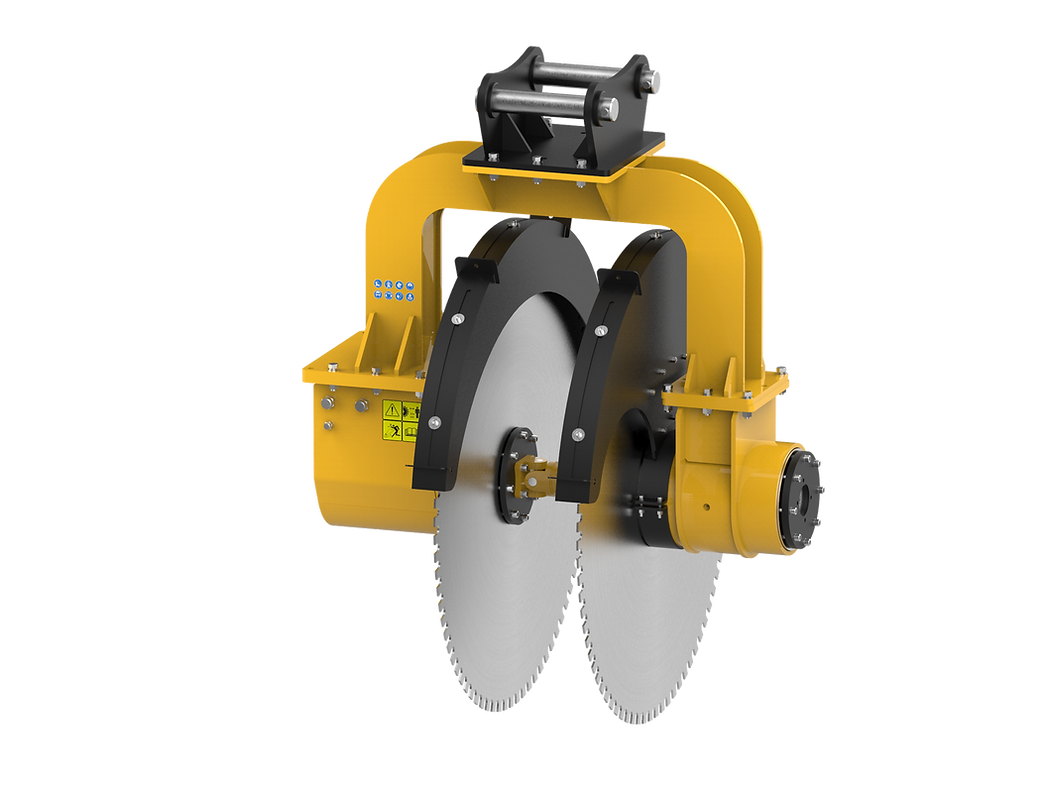

R-DB SERIES - DUAL BLADE

R 250DB

Double Blade Rock Saw

20-35 TON

REQUEST A QUOTE

R-DB SERIES - DUAL BLADE

R 350DB

Double Blade Rock Saw

30-45 TON

REQUEST A QUOTE

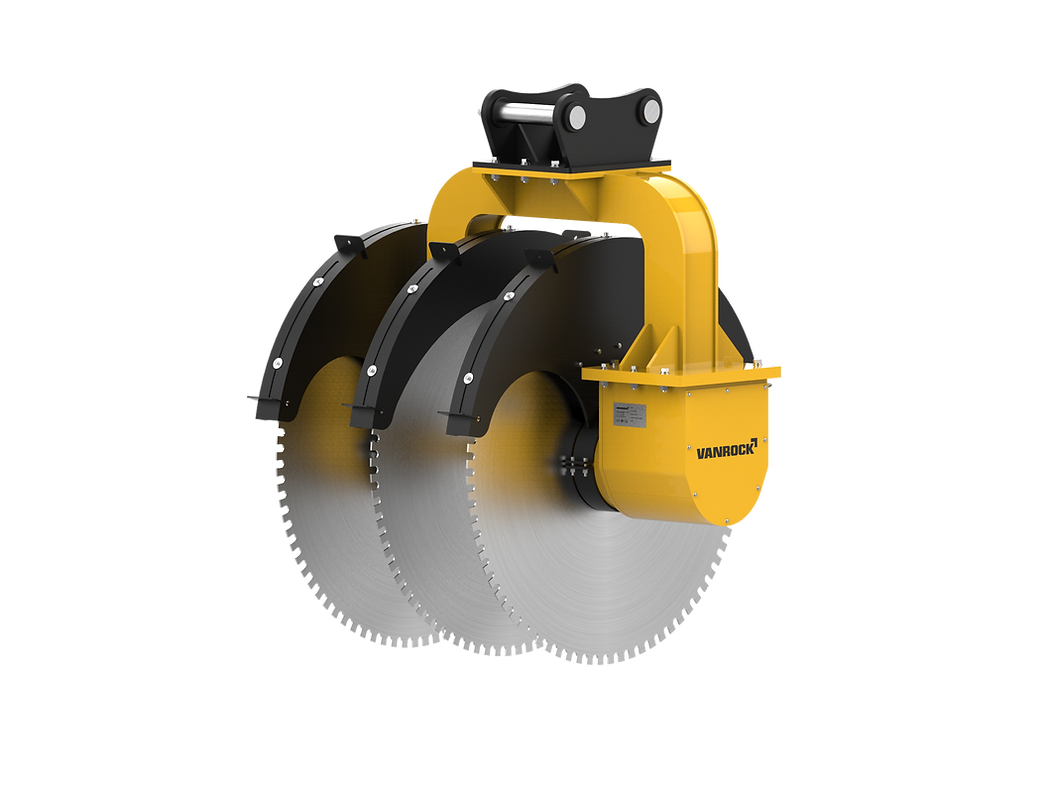

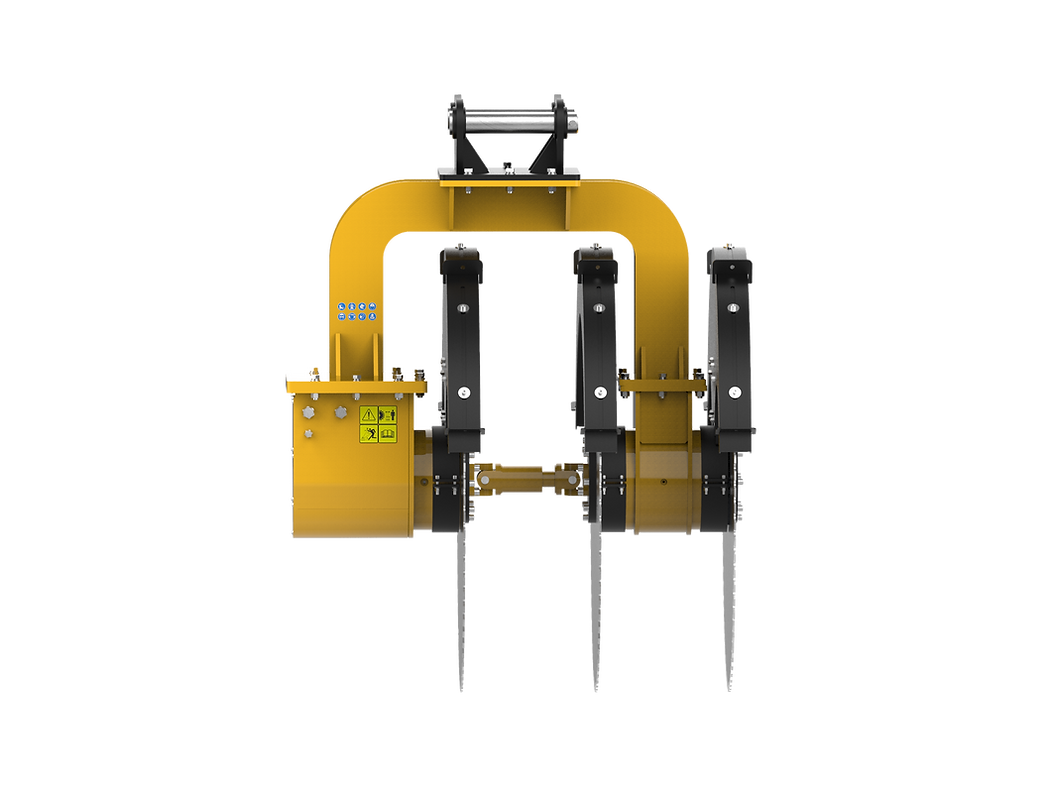

RX-GT SERIES - TRIPLE BLADE

RX 350GT

Triple Blade Rock Saw

20-45 TON

REQUEST A QUOTE

ROCK SAWS SPECIFICATIONS

Series	Name	Excavator Range	Max Power Output	Max Flow	Recommended Flow	Max Pressure	Output Torque	Output Shaft Speed	Weight	Saw Blade Diameter	Applicable Materials
RT SERIES - SINGLE BLADE	RT 10S	Excavator 1-4MT	40 KW	75 LPM	30-60 LPM	315 bar	580Nm@315bar	0-600 RPM	140 Kg	600-1000 MM	Granite, Basalt, Marble, Reinforced Concrete
RT SERIES - SINGLE BLADE	RT 50S	Excavator 5-10MT	41 KW	150 LPM	60-100 LPM	320 bar	600Nm@320bar	0-600 RPM	250 Kg	800-1400 MM	Granite, Basalt, Marble, Reinforced Concrete
RT SERIES - SINGLE BLADE	RT 100S	Excavator 8-17MT	70 KW	180 LPM	100-150 LPM	320 bar	1450Nm@320bar	0-600 RPM	350 Kg	1400-2000 MM	Granite, Basalt, Marble, Reinforced Concrete
RT SERIES - SINGLE BLADE	RT 200S	Excavator 15-25MT	120 KW	250 LPM	150-230 LPM	320 bar	2600Nm@320bar	0-500 RPM	450 Kg	1600-2200 MM	Granite, Basalt, Marble, Reinforced Concrete
RT SERIES - SINGLE BLADE	RT 300S	Excavator 20-45MT	230 KW	420 LPM	200-390 LPM	320 bar	4900Nm@320bar	0-400 RPM	750 Kg	2200-3600 MM	Granite, Basalt, Marble, Reinforced Concrete
RT SERIES - SINGLE BLADE	RT 500S	Excavator 45-60MT	280 KW	550 LPM	300-420 LPM	320 bar	6650NM@320bar	0-320 RPM	950 Kg	2600-3600 MM	Granite, Basalt, Marble, Reinforced Concrete
R-DB SERIES - DUAL BLADE	RT 250DB	Excavator 20-35MT	90 KW	280 LPM	180-250 LPM	450 bar	7450Nm@320bar	0-250 RPM	1300 Kg	2200-3500 X 9.5 MM	Granite, Basalt, Marble, Reinforced Concrete
R-DB SERIES - DUAL BLADE	RT 350DB	Excavator 30-45MT	120 KW	300 LPM	180-300 LPM	450 bar	7800@320bar	0-250 RPM	1350 Kg	2200-3500 X 9.5 MM	Granite, Basalt, Marble, Reinforced Concrete
RX-GT SERIES - TRIPLE BLADE	RX 350GT	Excavator 20-45MT	125 KW	320 LPM	200-300 LPM	315 bar	4000@300bar	375RPM@300LPM	2000 Kg	1600 MM	Granite, Basalt, Marble, Reinforced Concrete
