Diamond Tipped Blades
Effective for cutting through tough materials.
Automatic Blade Braking
Feature Prevents blade breakage.
Bi-Directional Rotation
Both clockwise and anti-clockwise for added flexibility.
180° Rotatable Head Bracket
Easy change of blade position for left and right cut.
360° Rotating Blade Cover
For easy manoeuvrability and maximum protection.
APPLICATION SECTORS
1-45 TON EXCAVATORS

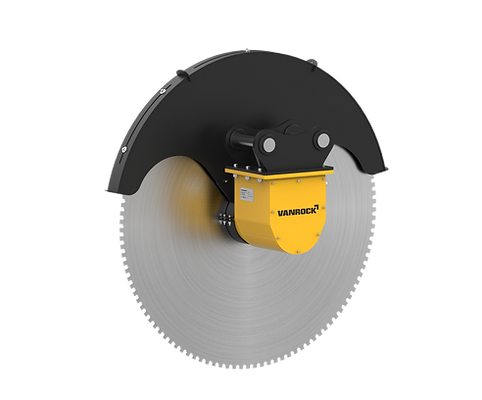

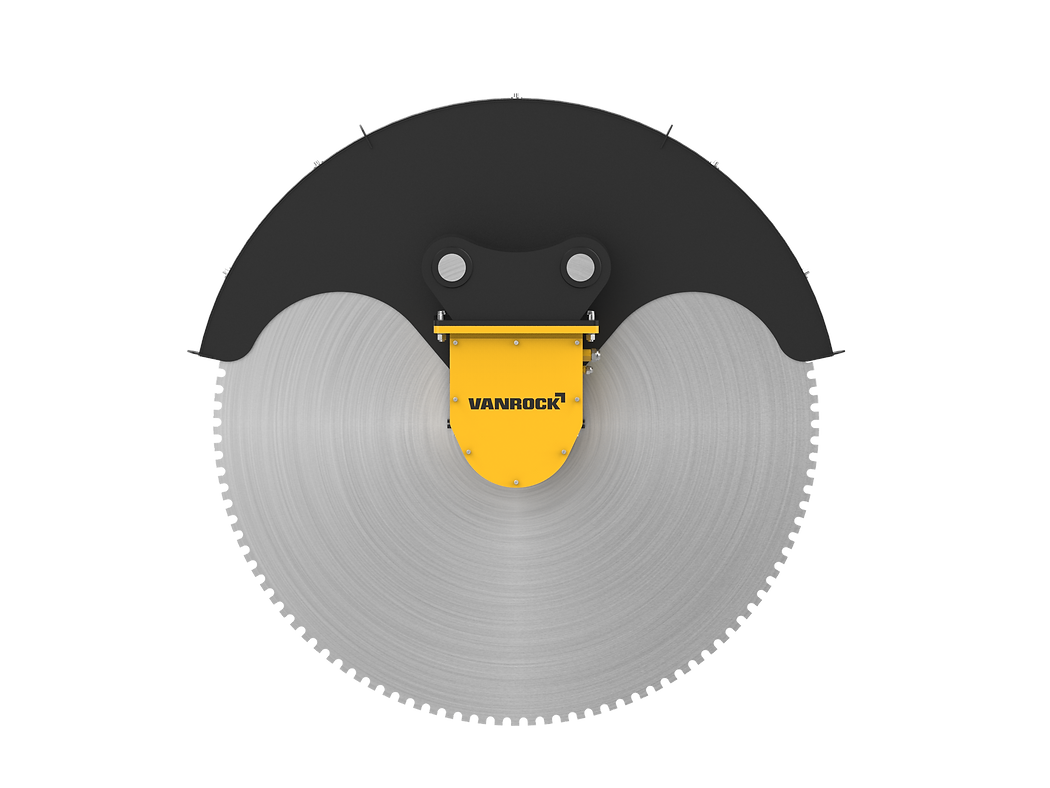

VANROCK DIAMOND ROCK SAWS
Equipped with Diamond tipped bladed, Vanrock Rock Saws are ideal for cutting sandstone, reinforced concrete, granite, limestone, hard limestone and even metal parts.
APPLICATION SECTORS
EXPLORE VANROCK ROCK SAWS RANGE
RT 10S
Single Blade Rock Saw
RT 50S
Single Blade Rock Saw
RT 100S
Single Blade Rock Saw
RT 200S
Single Blade Rock Saw
RT 300S
Single Blade Rock Saw
RT 500S
Single Blade Rock Saw

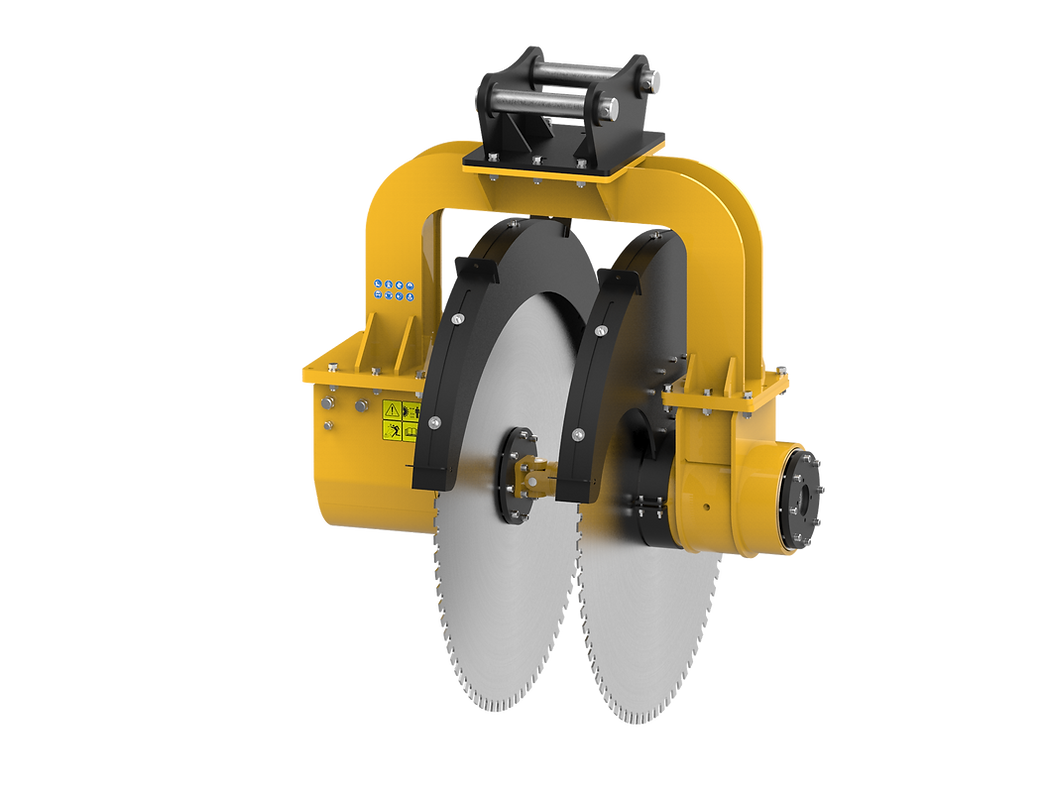

R 250DB
Double Blade Rock Saw
R 350DB
Double Blade Rock Saw

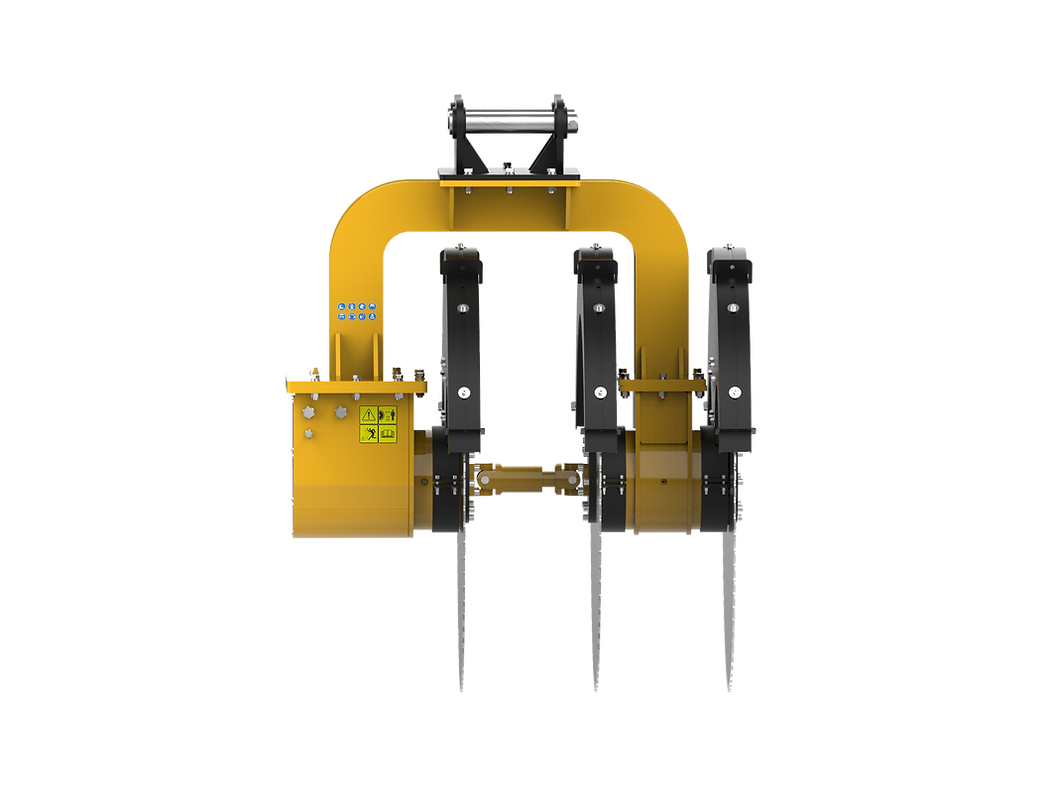

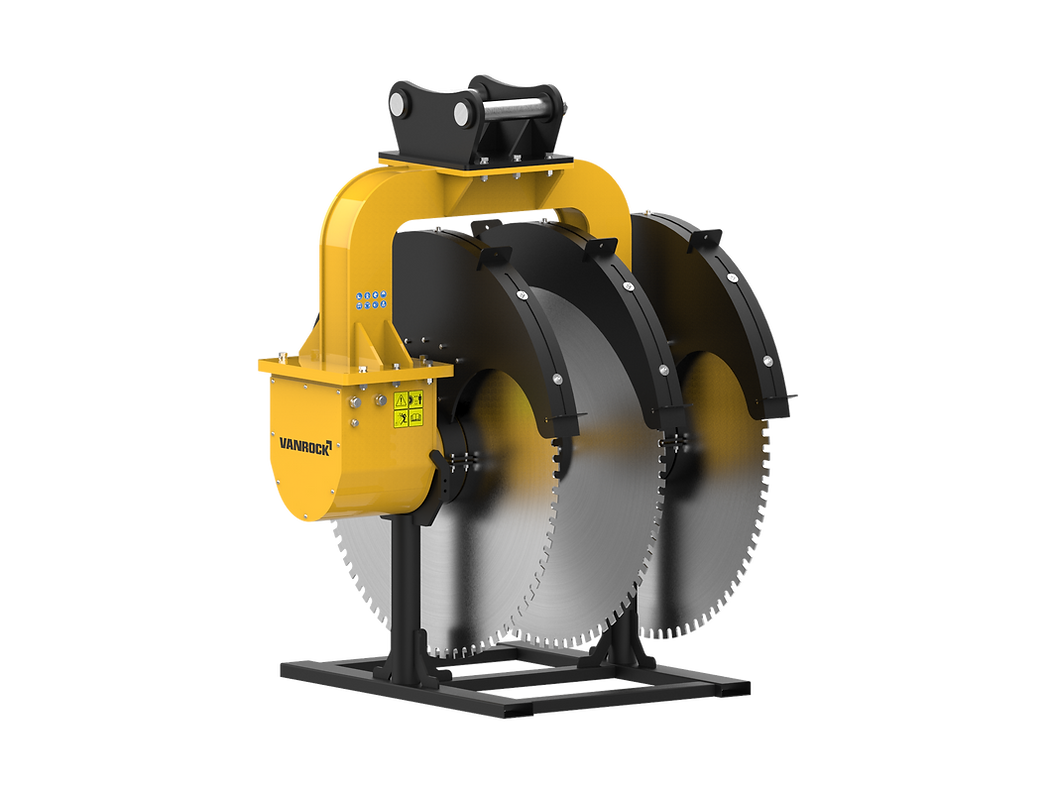

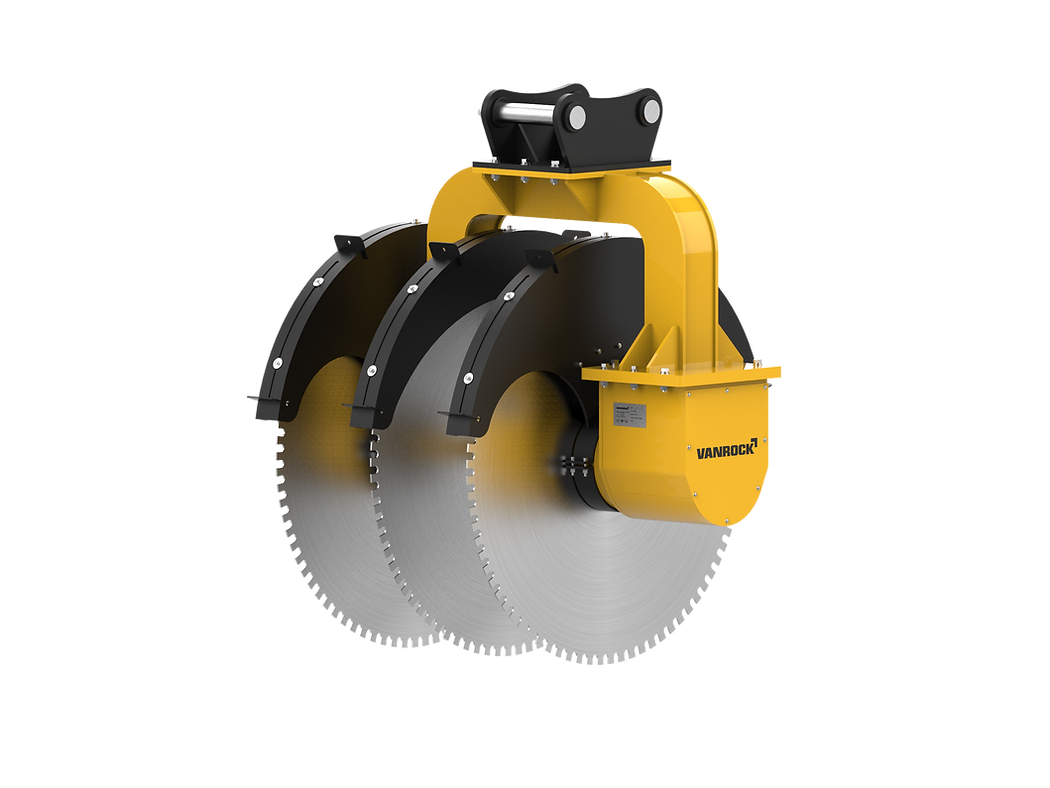

RX 350GT
Triple Blade Rock Saw
ROCK SAWS SPECIFICATIONS
Series | Name | Excavator Range | Max Power Output | Max Flow | Recommended Flow | Max Pressure | Output Torque | Output Shaft Speed | Weight | Saw Blade Diameter | Applicable Materials |
|---|---|---|---|---|---|---|---|---|---|---|---|
RT SERIES – SINGLE BLADE | RT 10S | Excavator 1-4MT | 40 KW | 75 LPM | 30-60 LPM | 315 bar | 580Nm@315bar | 0-600 RPM | 140 Kg | 600-1000 MM | Granite, Basalt, Marble, Reinforced Concrete |
RT SERIES – SINGLE BLADE | RT 50S | Excavator 5-10MT | 41 KW | 150 LPM | 60-100 LPM | 320 bar | 600Nm@320bar | 0-600 RPM | 250 Kg | 800-1400 MM | Granite, Basalt, Marble, Reinforced Concrete |
RT SERIES – SINGLE BLADE | RT 100S | Excavator 8-17MT | 70 KW | 180 LPM | 100-150 LPM | 320 bar | 1450Nm@320bar | 0-600 RPM | 350 Kg | 1400-2000 MM | Granite, Basalt, Marble, Reinforced Concrete |
RT SERIES – SINGLE BLADE | RT 200S | Excavator 15-25MT | 120 KW | 250 LPM | 150-230 LPM | 320 bar | 2600Nm@320bar | 0-500 RPM | 450 Kg | 1600-2200 MM | Granite, Basalt, Marble, Reinforced Concrete |
RT SERIES – SINGLE BLADE | RT 300S | Excavator 20-45MT | 230 KW | 420 LPM | 200-390 LPM | 320 bar | 4900Nm@320bar | 0-400 RPM | 750 Kg | 2200-3600 MM | Granite, Basalt, Marble, Reinforced Concrete |
RT SERIES – SINGLE BLADE | RT 500S | Excavator 45-60MT | 280 KW | 550 LPM | 300-420 LPM | 320 bar | 6650NM@320bar | 0-320 RPM | 950 Kg | 2600-3600 MM | Granite, Basalt, Marble, Reinforced Concrete |
R-DB SERIES – DUAL BLADE | RT 250DB | Excavator 20-35MT | 90 KW | 280 LPM | 180-250 LPM | 450 bar | 7450Nm@320bar | 0-250 RPM | 1300 Kg | 2200-3500 X 9.5 MM | Granite, Basalt, Marble, Reinforced Concrete |
R-DB SERIES – DUAL BLADE | RT 350DB | Excavator 30-45MT | 120 KW | 300 LPM | 180-300 LPM | 450 bar | 7800@320bar | 0-250 RPM | 1350 Kg | 2200-3500 X 9.5 MM | Granite, Basalt, Marble, Reinforced Concrete |
RX-GT SERIES – TRIPLE BLADE | RX 350GT | Excavator 20-45MT | 125 KW | 320 LPM | 200-300 LPM | 315 bar | 4000@300bar | 375RPM@300LPM | 2000 Kg | 1600 MM | Granite, Basalt, Marble, Reinforced Concrete |
RELATED SERVICE PARTS FOR THE ROCK SAWS
DIAMOND TIPS
DIAMOND TIPS
MORE INFOCAN'T FIND IDEAL ROCK SAW FOR YOUR APPLICATION?
We provide custom solutions to all our customers and offer drum cutters that you can take advantage of.
