WHY USE VANROCK POWER MIX?

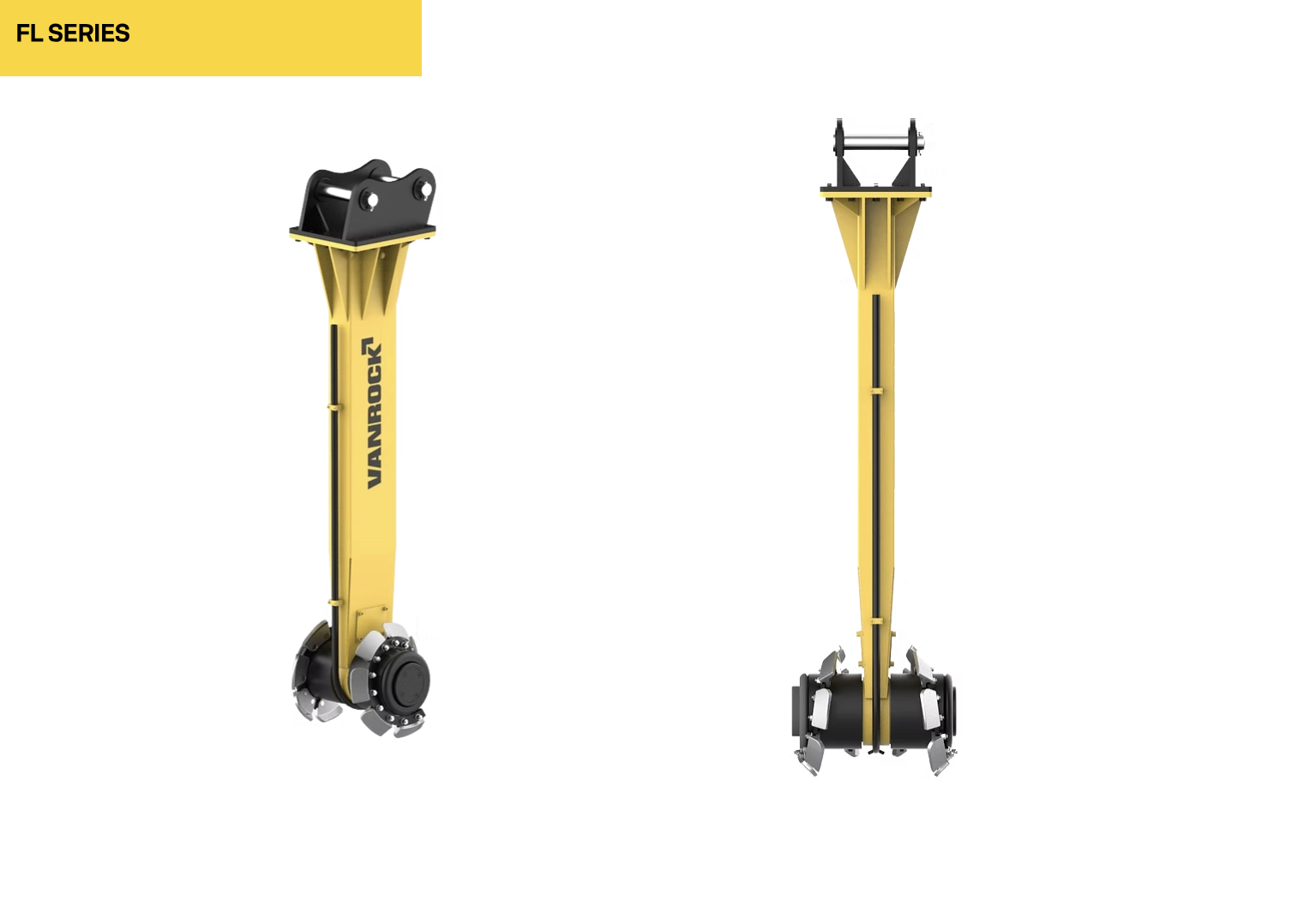

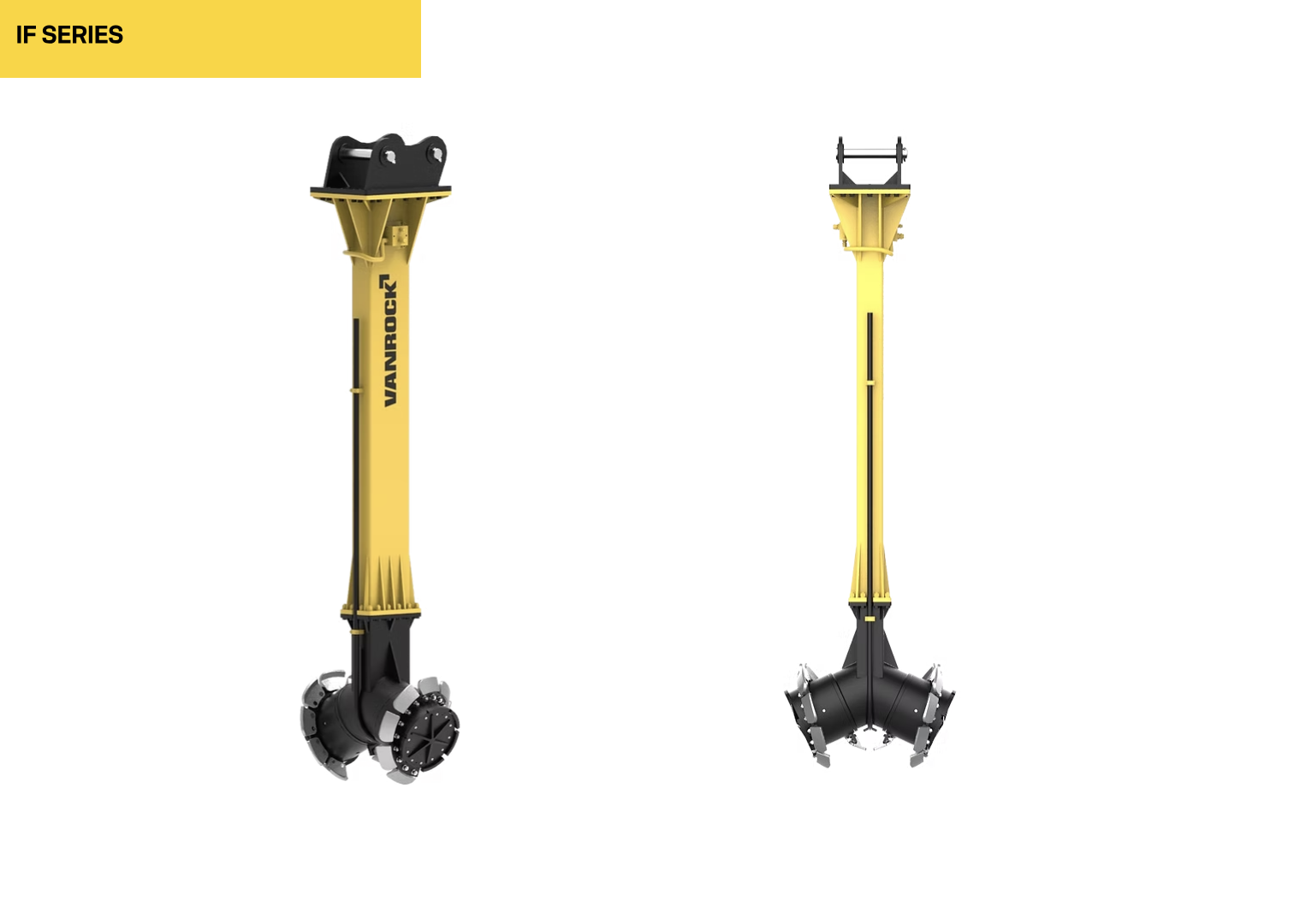

Elevate your soil stabilization efforts with Vanrock premier Power Mixers – the IF and the FL Series. These mixer models, distinguished by their shapes and mixing depths, are detailed in our technical parameter table.
As the cornerstone of our Soil Stabilization System, our Power Mixers boast a refined streamlined frame design and are crafted from top-quality steel, offering superior strength without added weight.
Utilizing the excavator’s hydraulic system, they provide unparalleled mobility, allowing seamless operation in diverse terrains.
Count on VANROCK Power Mixers to deliver exceptional performance wherever your project demands. Our mixers can access and mix in any area reachable by the excavator, ensuring efficiency and precision in every application.


TECHINCAL SPECIFICATIONS
Description | Value | Unit |
|---|---|---|
EXCAVATOR | 20-35 | Ton |
MIXING DEPTH | 0-10 | Metre |
MIXING WIDTH | 1280 | mm |
EXTENSIONS | 2-5 | Metre |
POWER | 160 | KW |
WEIGHT | 2300 | Kg |
OIL FLOW | 200-350 | lpm |
OIL PRESSURE | 180-350 | bar |
Description | Value | Unit |
|---|---|---|
EXCAVATOR | 25-40 | Ton |
MIXING DEPTH | 0-11 | Metre |
MIXING WIDTH | 1280 | mm |
EXTENSIONS | 2-6 | Metre |
POWER | 210 | KW |
WEIGHT | 2600 | Kg |
OIL FLOW | 250-400 | lpm |
OIL PRESSURE | 180-350 | bar |
Description | Value | Unit |
|---|---|---|
EXCAVATOR | 20-30 | Ton |
MIXING DEPTH | 0-7 | Metre |
MIXING WIDTH | 880 | mm |
EXTENSIONS | 2-5 | Metre |
POWER | 125 | KW |
WEIGHT | 2300 | Kg |
OIL FLOW | 200-300 | lpm |
OIL PRESSURE | 180-300 | bar |
Description | Value | Unit |
|---|---|---|
EXCAVATOR | 30-40 | Ton |
MIXING DEPTH | 0-10 | Metre |
MIXING WIDTH | 880 | mm |
EXTENSIONS | 2-6 | Metre |
POWER | 210 | KW |
WEIGHT | 2500 | Kg |
OIL FLOW | 250-400 | lpm |
OIL PRESSURE | 180-350 | bar |

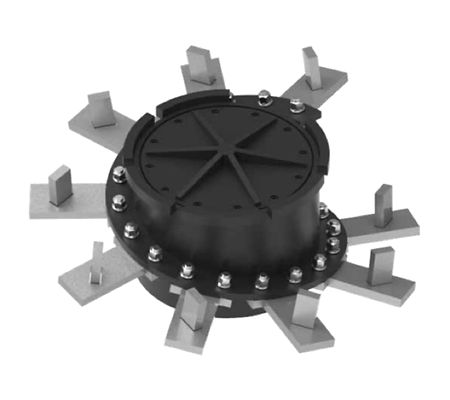

BLADE OPTIONS
TYPE 1 BLADES
TYPE 2 BLADES

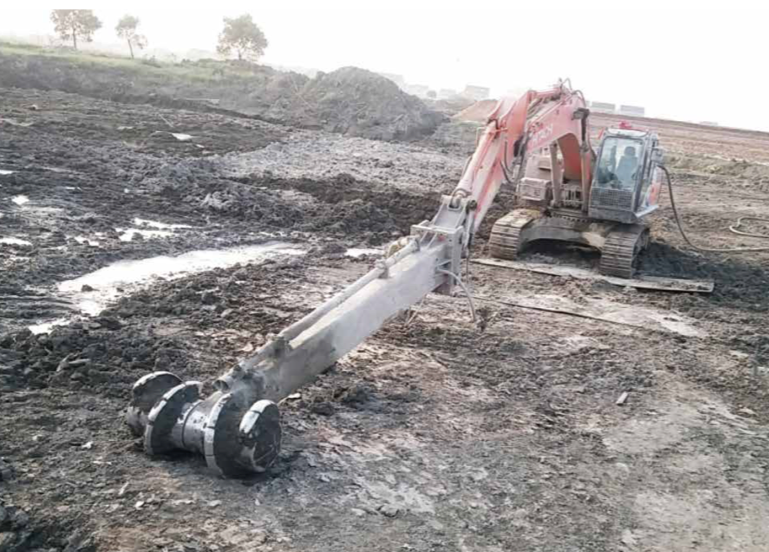

EXCAVATOR REQUIREMENTS
The Soil stabilization system requires customers to provide their own excavators for equipment, with guidance available from Vanrock during the selection process.
When choosing the right excavator for construction, it’s crucial to consider various factors, such as the weight of both the power mixer and the excavator, as well as the soil’s suction capacity. If the excavator is too light and the soil too soft, there’s a risk of the power mixer becoming stuck; conversely, if the excavator is too heavy, it could pose safety hazards due to the construction site’s capacity limitations. Drawing from both historical projects and professional expertise, it’s recommended to opt for an excavator weighing over 20 tons when solidifying shallow layers exceeding 1 meter in depth.
